Configure your perfect audio setup.

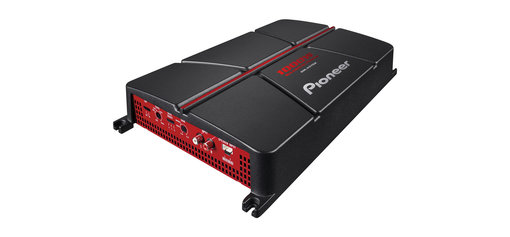

Designed to enhance your in-car audio experience, the powerful GM-A5702 gives you total installation freedom and very low distortion. With a one-body heat sink and gain adjustment of up to 6.5V , you can turn your in-car audio experience into the sound staging environment that you’re looking for.
The GM-A5702 offers support for 2 Ohm and 4 Ohm speakers, and can produce a massive power of 1000 W.
Specifications
Variable LPFadjust your low-pass filter frequency for greater audio system flexibility
Full specifications
Main Features
| Chassis size (W x H x D) | 356(W) X 60(H) X 215(D) mm |
| Unit weight | 2.2 |
| Maximum power | 1000W (Bridged) or 2 x 300W (4 Ω) or 2 x 500 W (2 Ω) |
| 2-channel | Yes |
| CEA 2006 Power | 2 x 150W (4 Ω) |
| Continuous power output | 2 x 150W (4 Ω) or 1 x 480W (4Ω bridged) or 2 x 240 W (2 Ω) |
| Load impedance capability | 2-8 ohm allowable (stereo) |
| Frequency response | 10Hz ~ 70kHz (+0dB , -3dB) |
| Distortion | < 0.05 % |
| S/N ratio | > 96 dB |
| Bass Boost | 50Hz; 0/6/12dB |
| LPF | 40-500 Hz (-12 dB/oct) |
| Speaker Terminals | Screw-type |
| Speaker Input Level | 3 – 26 V |
| Max. current consumption | 36A |
Connections
| High Voltage Output | 300 mV – 6.5 V |
