Amplify your audio experience.
Give into your deepest desire for power. Work it out how you want with the bridgeable amps. Just consider the consequences whatever you do: pure and clean, distortion-free power.

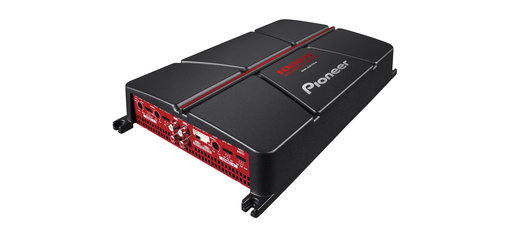

The GM-A6704 will ignite your system, but keep the heat under wraps. These amps are techno wonders and will rumble you to the core.
Specifications
4-channelcombine impressive power with big sound for a loud, clear and distortion-free music experience
Variable HPFadjust your high-pass filter frequency for greater audio system flexibility
Variable LPFadjust your low-pass filter frequency for greater audio system flexibility
Full specifications
Main Features
| HPF | 40-500Hz (-12 dB/oct) |
| Speaker Terminals | Screw-type |
| Speaker Input Level | 3 – 26 V |
| Max. current consumption | 31A |
| Chassis size (W x H x D) | 356(W) X 60(H) X 215(D) |
| Unit weight | 2.2 |
| Maximum power | 1000W (Bridged) or 4 x 170W (4 Ω) or 4 x 250 W (2 Ω) |
| 4-channel | Yes |
| CEA 2006 Power | 4 x 60W (4 Ω) |
| Continuous power output | 4 x 60W (4 Ω) or 4 x 95W (2Ω) or 2 x 190 W (4Ω bridged) |
| Variable LPF | Yes |
| Load impedance capability | 2-8 ohm allowable (stereo) |
| Frequency response | 10Hz ~ 70kHz (+0dB , -3dB) |
| Distortion | < 0.05 % |
| S/N ratio | > 95 dB |
| Bass Boost | 50Hz; 0-12dB |
| LPF | 40-500Hz (-12 dB/oct) |
Connections
| High Voltage Output | 300 mV – 6.5 V |
Audio
| Variable HPF | Yes |
