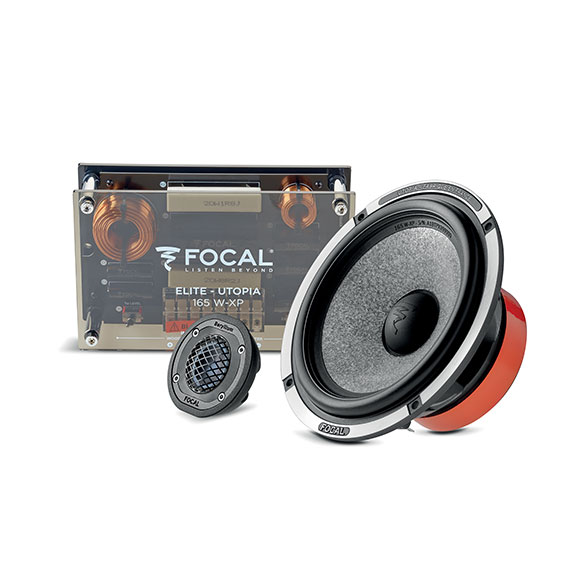

The next in line after our passive 2-way kit 165W-RC, a leading product heralded for its performance for several years now, the 165W-XP integrates our exclusives technologies: TMD® surround, progressive spider, ventilated motor, new Beryllium tweeter, bi-amplification crossover. We also gave it a new design, steeped in our DNA and geared towards performance. The result: an uncompromising kit that opens the door to the world of Utopia.

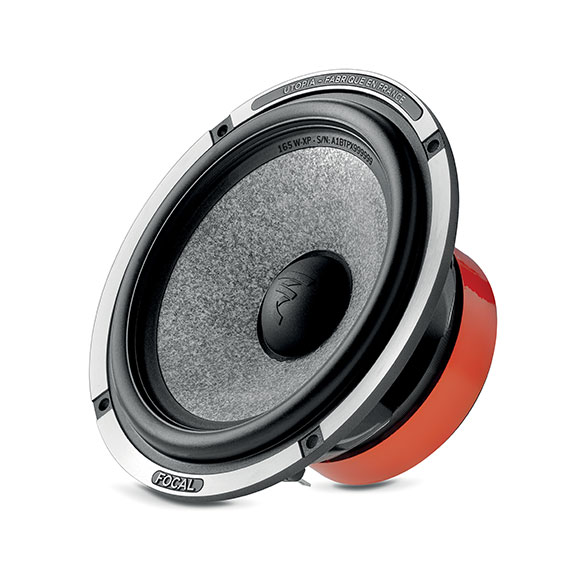

‘W’ sandwich cone
The ‘W’ sandwich cone perfectly optimises the frequency response curve by fully mastering the three key parameters of lightness, rigidity and damping. When listening through the ‘W’ sandwich cone, the sound is completely transparent with extremely little distortion.

TMD® surround
Originally developed for the Sopra line of high-fidelity loudspeakersour TMD® (Tuned Mass Damper) surround has a unique profile, designed to better control the effects of resonance and to drastically reduce the distortion associated with deformations of the cone. The speaker driver takes advantage of this patented technology by spreading better defined and very realistic midranges.

Progressive spider
The progressive spider used on all our Utopia drivers is built around a progressive section that reproduces all the impact of the bass whilst optimising the linearity, precision and dynamics of the sound.

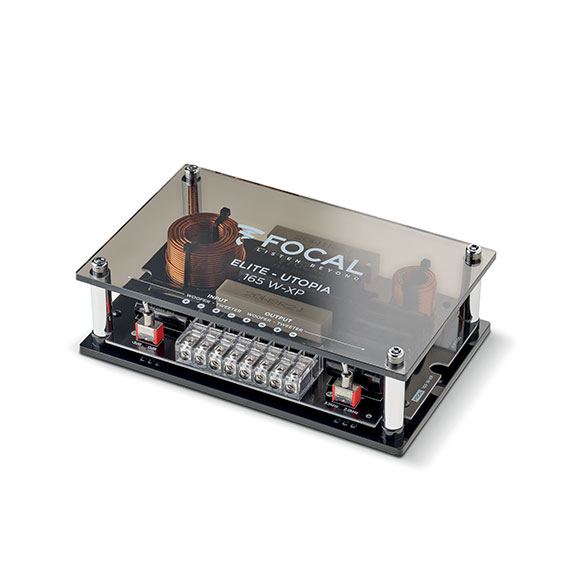

Bi-amplification crossover
All the components on our crossover have been specially selected and optimised to better control the effects of thermal dissipation. These components, essential for managing different channels and the soundstage, have improved reliability. As for the bi-amplification, this enables the woofer and tweeter to be driven separately in terms of power, resulting in optimum performance.


  • Type Separated 2-way passive kit

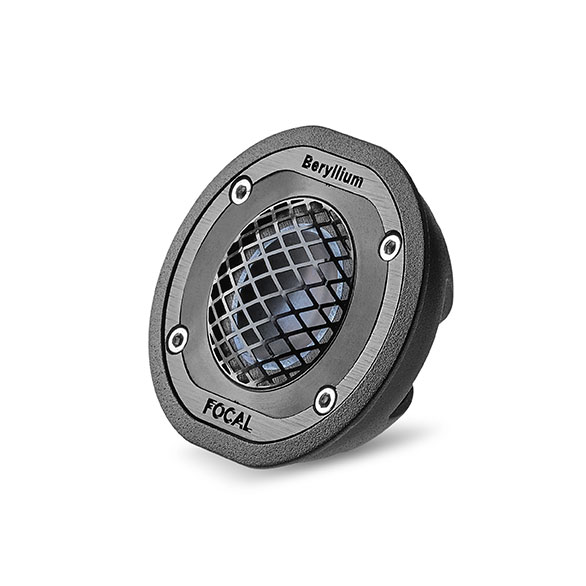

  • Tweeter Beryllium
  • Inverted dome
  • Woofer (6 1/2″) 165mm
  • Cone ‘W’ Suspension
  • Tuned Mass Damper (TMD®)
  • Impedance 2Ω
  • Max. power 200W
  • Nom. power 100W
  • Sensitivity (2.83 V/1 m) 93dB
  • Frequency response 60Hz – 40kHz
  • Accessories Grilles, screws andfilters supplied
