KIT 165 W-XP Focal Passif UTOPIA BE 1,849.00
ACX690 Focal 3-Way Elliptical Coaxial Kit 145.00

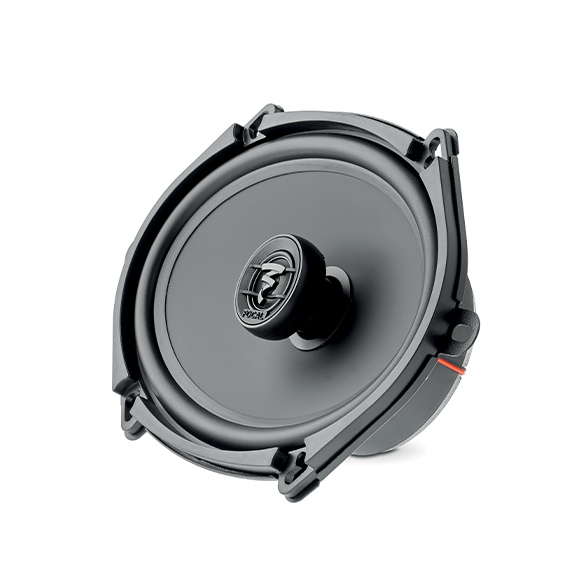

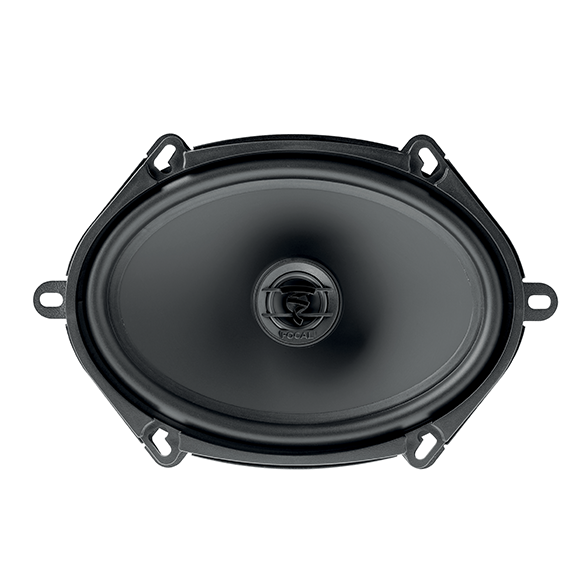

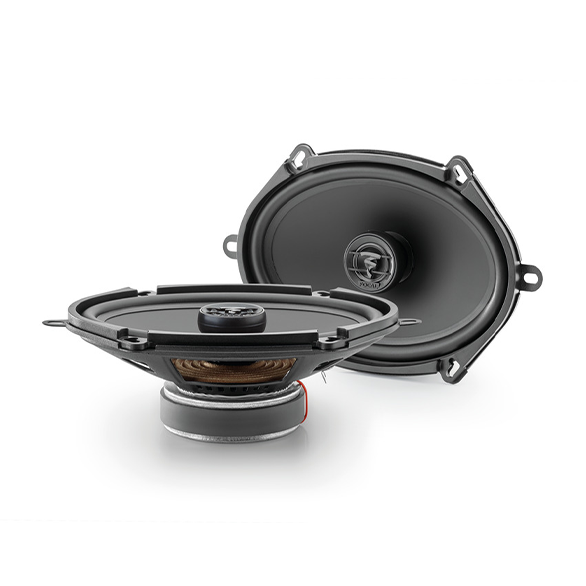

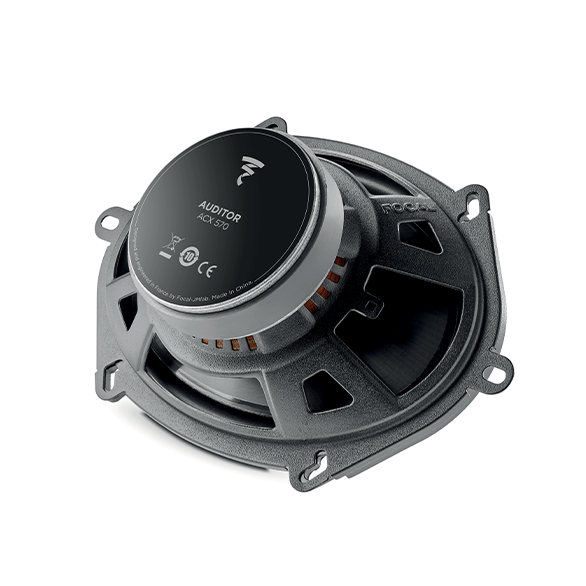

Like all the Auditor kits, the 2-way coaxial elliptical kit ACX 570 delivers neutral and dynamic sound, precise treble and an improved soundstage thanks to its woofer with polypropylene cone and its adjustable, inverted dome mylar tweeter.
Measuring 5 1/8” x 7 1/8” (13 × 18cm), it provides a large sound diffusion surface while reducing the height of the product for easy, quick and invisible installation in the vehicle.

ACX 570 can be linked with other electronics or directly connected to the vehicle’s original amplifier to enhance your in-car listening experience. Its high sensitivity guarantees an unrivalled level of performance in its category. It is perfect for a début Focal system and/or for improving your original sound system.



All Auditor products benefit from Focal know-how and expertise: the mylar inverted dome tweeter – a strong marker of the Focal DNA – for precise treble and an improved soundstage; polypropylene cone for a neutral and dynamic sound; butyl surround for impressive resistance; ferrite magnet.


Very compact, the woofers can be either surface-mounted or installed flush in the vehicle’s original locations.


The steel basket of the speaker driver is rigid and durable. The flat grilles supplied, in ABS and Mesh, are just as good-looking as they are inherent in the kit’s performance. Finally, the black lacquer finish on the tweeter means it assimilates seamlessly into the cabin of all modern vehicles.

Key points

  • Developed in France by Focal
  • Easy to amplify loudspeakers
  • Black lacquered finish on the tweeter
  • Exclusive Focal technologies
  • Can be surface mounted or fully integrated


  • Type: 2-way elliptic coaxial kit
  • Woofer: 130x180mm
  • Depth: 59.50mm
  • Cone: Polypropylene
  • Maximum power: 120W
  • Nominal power: 60W RMS
  • Sensitivity (2.83V/1m): 91.6dB
  • Frequency response: 60Hz – 21kHz
  • Impedance: 4 Ω
  • Voice-coil diameter: 25mm
  • Magnet: Ferrite
  • Suspension: Butyl
  • Tweeter: Inverted dome tweeter
  • Crossover: Integrated
