Thanks to its modular structure, the 8-inch SPH-EVO82DAB-UNI can be fitted to cars where this was previously impossible. The new receiver feature DAB+ Digital Radio, both Android Auto™ and Apple CarPlay®, as well as entertainment features such as Spotify®, Bluetooth® streaming, WebLink®, FLAC file playback and more.
SPH-EVO82DAB+ 1-DIN installation kit
- ΠΕΡΙΓΡΑΦΗ

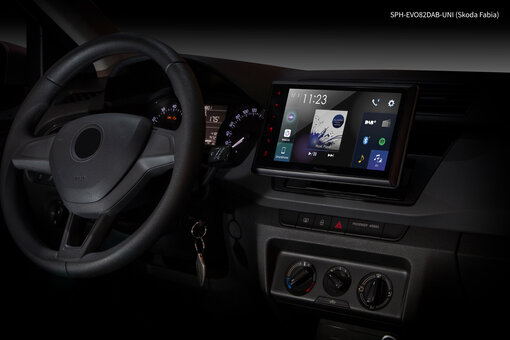

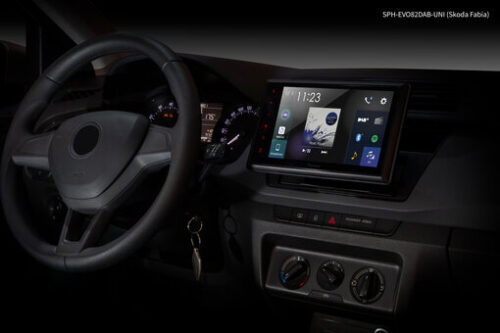

With the ‘floating’ or ‘tablet’ style installation of the SPH-EVO82DAB-UNI modular receivers, you can install these new products into many vehicles that come with a standard 1-DIN opening.
The SPH-EVO82DAB-UNI kit allows the unit to be adjusted in depth, height and angle. Connectivity towards your vehicle can be retained with the existing Pioneer SWC interface line-up.
SPH-EVO Car Compatibility List
Specifications
Apple CarPlayIs the smarter, safer and more fun way to use your iPhone® in the car. Apple CarPlay gives iPhone users an incredibly intuitive way to make calls, use Maps, listen to music, and access messages with just a word or a touch. Apple CarPlay requires iPhone 5 or newer with the latest version of iOS.
Android AutoExtends the Android platform into the car in a way that’s purpose-built for driving and automatically brings you useful information and organises it into simple cards that appear just when they’re needed. It’s designed to minimise distraction so you can stay focused on the road ahead. Android Auto is compatible with Android phones running Android 5.0 (Lollipop) or later. Android Auto may not be available on all devices and is not available in all countries or regions.
WazeWaze is a social GPS driving/navigation app that offers map, real-time traffic, and various other information for you to access on the large display of Pioneer compatible multimedia devices .
WebLinkThe new WebLink app expands in-car entertainment with an amazing world of apps. Enjoy personalised music, videos, and other connected content powered by your phone/ tablet and the cloud.
DAB+Enjoy the convenience of listening to your favourite radio stations in crystal clear digital quality thanks to a built-in Digital Radio tuner.
Digital Radio Tick Mark Approved productManufacturers must meet the minimum specification, verified by independent testing. All Pioneer products that use this Digital Radio Tick Mark have been independently tested and approved so you can buy with confidence.
Bluetooth®Obey local driving laws with built-in Bluetooth (HFP). Wide Band Speech hands-free calling, wireless audio streaming (A2DP) with artist, album, and song search, simple pairing, and control audio (AVRCP), Bluetooth® wireless technology has made life in the vehicle safer and more convenient.
Made for iPod / iPhoneDirectly control your iPod / iPhone, for charging, music and video via an optional interface cable (sold separately), depending on your iOS device. Song, artist, time and album information are beautifully displayed on the touchscreen.
Siri Eyes Freemake use of your iPhone’s Siri functionality through your unit’s external microphone and the speakers of your vehicle
Compatible with AndroidConnect and listen to music stored on your device without the need for an app
SpotifyWith Spotify, just connect your smartphone to comfortably browse your favourite playlists, albums, tracks and artists using your headunit controls.
Multi colour illuminationMatch the display and key illumination to your vehicle’s interior lighting with a range of endless colour combinations.
USB InputConnect any device with an USB interface cable to charge your device or listen to clean, clear sound.
FLACEnjoy FLAC lossless digital audio files in your vehicle with playback output at CD quality, without the need to convert.
13-band Graphical EQAdjust your audio output in detail for a music experience tailored to your preferences.
Modular designA touchscreen with separated control unit allows flexible installation.
Main Features
| Apple CarPlay | |
| Apple CarPlay Connection | USB connection |
| Android Auto | |
| Waze | Yes |
| WebLink | |
| DAB+ | |
| Digital Radio Tick Mark Approved product | |
| Bluetooth® | |
| Spotify | |
| Multi colour illumination | |
| USB Input | |
| Cellular telephone auto muting | |
| Screen | 8″ WVGA Capacitive Multi-touchscreen |
| Installation Type | Modular and 1-DIN |
| Front Panel | Multi-colour display and screen |
| Button Illumination | RGB Colour Customisation (210,000 Colours) |
| Maximum power | MOSFET 50W x 4 |
| Accessories | Included: • Installation Kit for Peugeot 208 / 2008 (model year 2012 – 2019) • Microphone for Hands-free Calling Optional: |
| Tuner | • RDS FM/AM tuner • DAB+ Tuner (Time Shift function) |
| Plays | • Your iPod, iPhone, Android Smartphone • Bluetooth audio Via USB: |
| USB Input | Rear USB (1.5 Amp) |
| Modular design |
Apple Compatibility
| Made for iPod / iPhone | |
| Siri Eyes Free | |
| Works with iPod | |
| Works with iPhone / iPod | |
| Works with iPhone |
Android Compatibility
| Compatible with Android |
Audio
| FLAC | |
| 13-band Graphical EQ | |
| RCA Pre-Outs | 3 (Front, Rear, Subwoofer) |
| 3-Way Network Mode | |
| Source Level Adjuster | |
| High Pass Filter | |
| Low Pass Filter | |
| Loudness | |
| Equaliser | 13-band Graphic Equaliser |
| Auto EQ (Equaliser) | |
| Time Alignment |
Connections
| Aux-in | Rear Aux-in |
| iPod/iPhone Direct Control | |
| PAL/NTSC/SECAM | |
| High Voltage Output | 4V |
| RCA video | 2 x Video Input (RCA / mini-jack AV) |
| Hard wired remote input | |
| Video output | Rear Video output |
| ISO connector | |
| Input for rear camera | Yes |
Bluetooth
| Pioneer Bluetooth | |
| Additional Bluetooth Features | • Audio streaming • Automatic Phone book Transfer (5 x 1000 contacts) • 2 Phones full time connect • Autopairing via USB |
| Compatibility | HFP/A2DP/SPP |
| Hands-free calls |
Screen Features
| Selectable wide screen modes | |
| Rear camera switching | |
| Aspect ratio | 16:09 |
