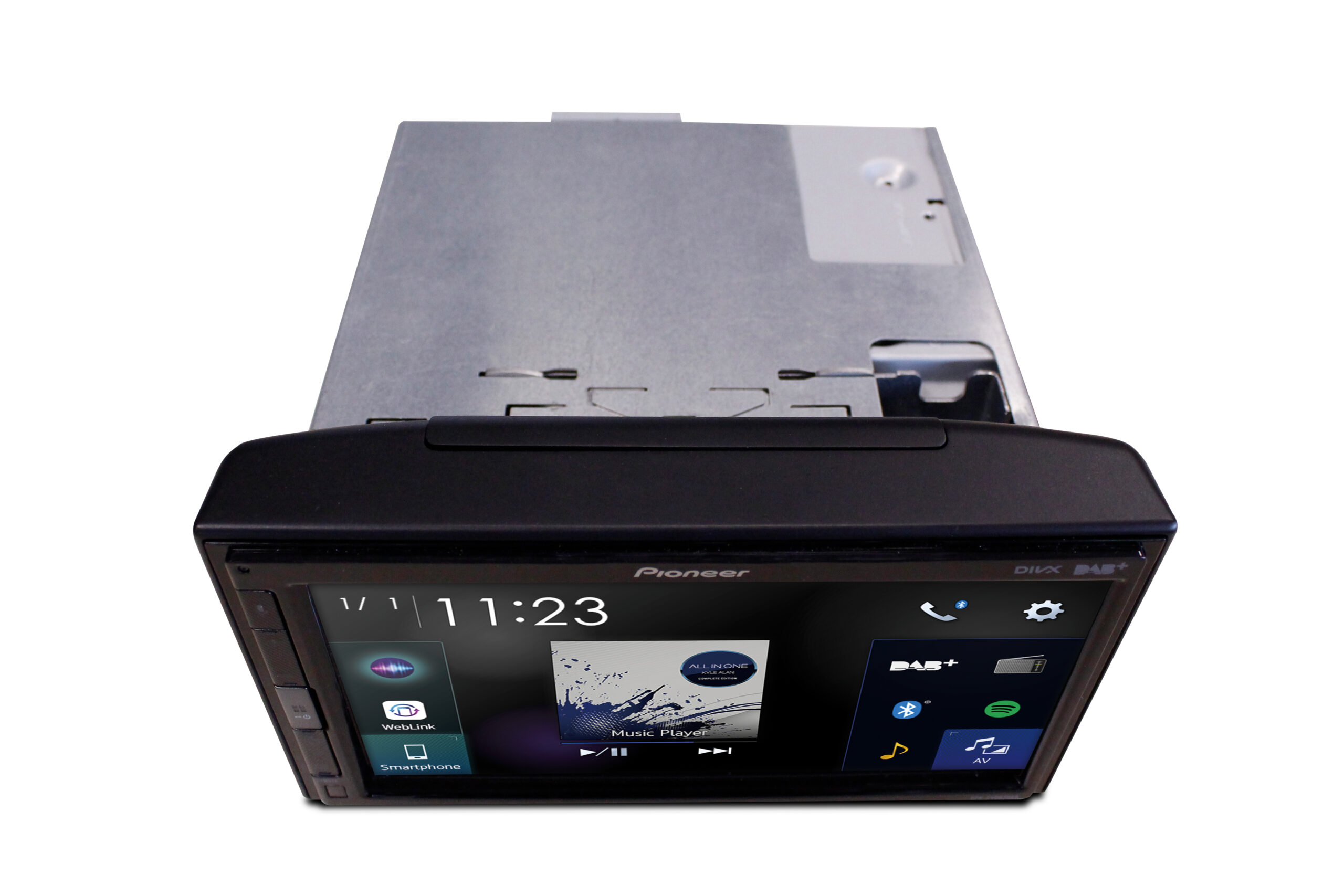

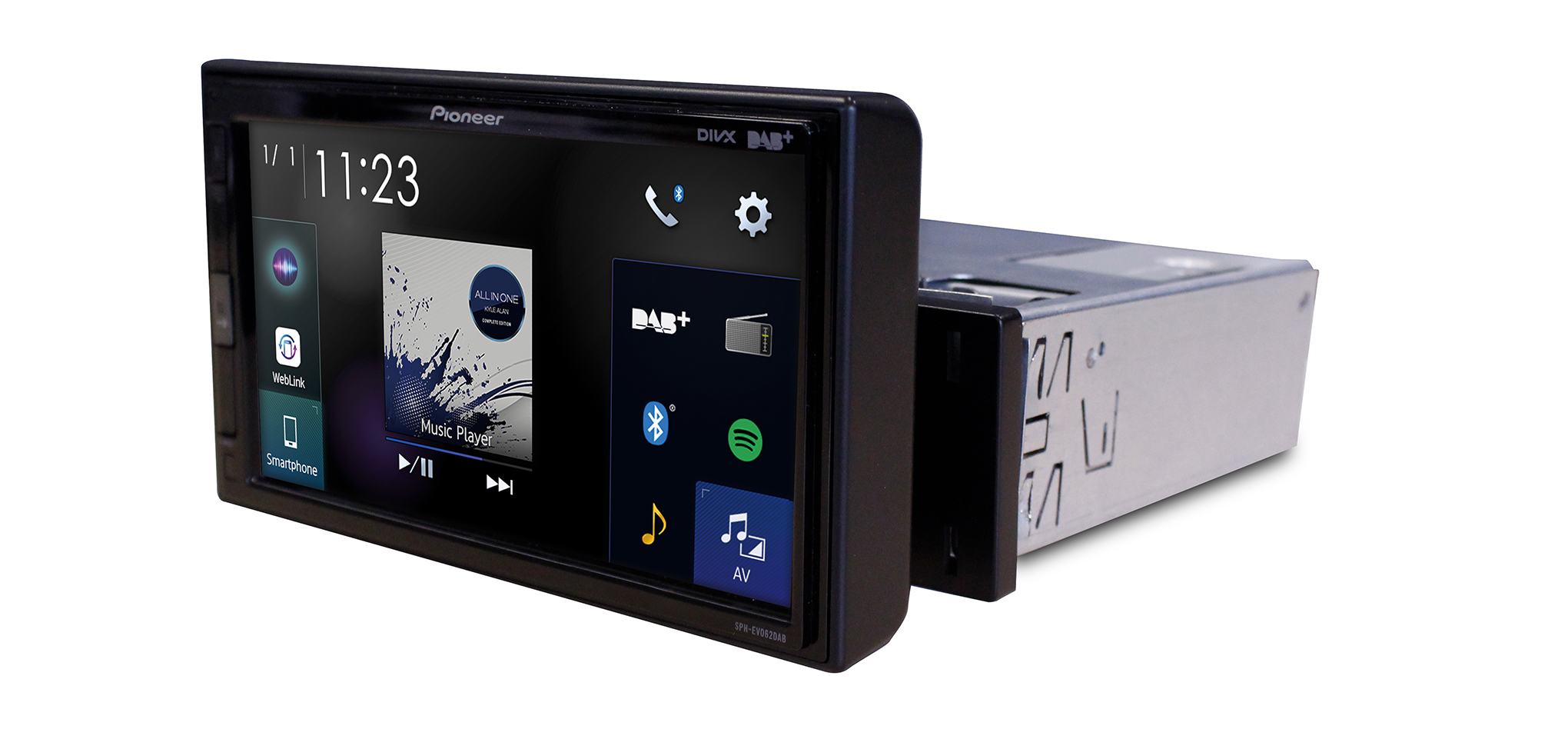

With the ‘floating’ or ‘tablet’ style installation of the SPH-EVO62DAB-UNI modular receivers, you can install these new products into many vehicles that come with a standard 1-DIN opening.
The SPH-EVO62DAB-UNI kit allows the unit to be adjusted in depth. Connectivity towards your vehicle can be retained with the existing Pioneer SWC interface line-up.
SPH-EVO Car Compatibility List
Full specifications
Main Features

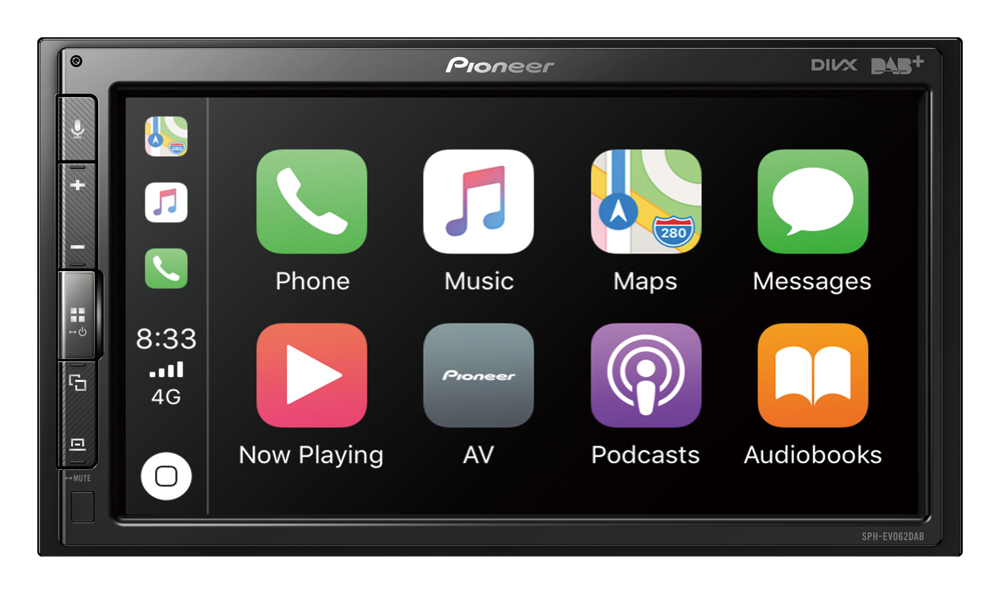

| Apple CarPlay | |
| Apple CarPlay Connection | USB connection |

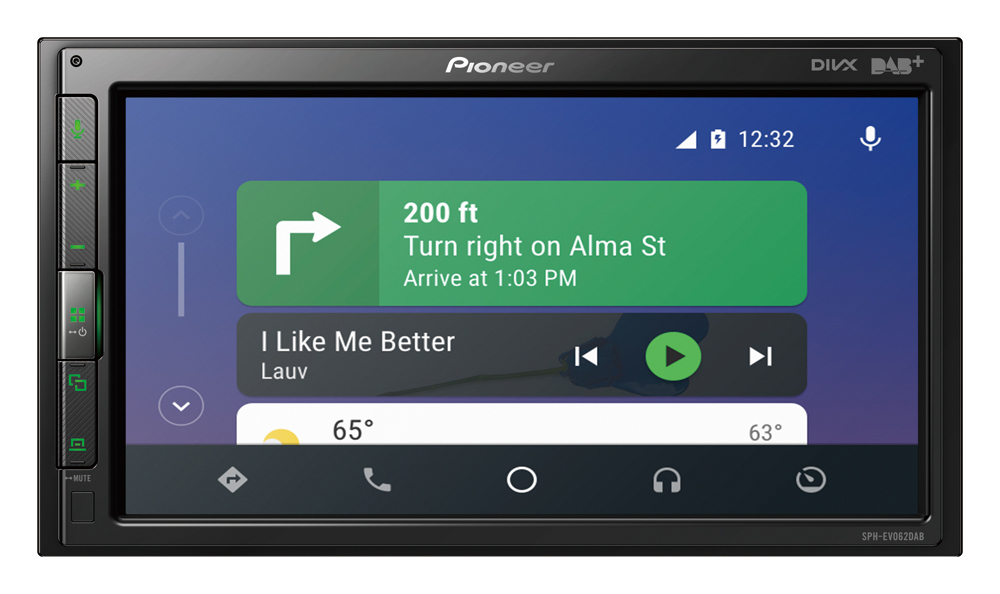

| Android Auto | |
| Waze | Yes |
| WebLink | |
| DAB+ | |
| Digital Radio Tick Mark Approved product | |
| Bluetooth® | |
| Spotify | |
| Multi colour illumination | |
| USB Input | |
| Cellular telephone auto muting | |
| Screen | 6.8″ WVGA Clear Type Touchscreen |
| Installation Type | Modular and 1-DIN |
| Front Panel | Multi-colour display and screen |
| Button Illumination | RGB Colour Customisation (210,000 Colours) |
| Maximum power | MOSFET 50W x 4 |
| Accessories | Included: • 1 x USB extension cable • 1 x External Bluetooth micOptional: • CA-AN-DAB.001 (DAB antenna) • CA-IU.52C (USB to Lightning cable) • CA-MU.50 (USB to Micro USB Cable) • CD-RGB150E (1.5m Extension Cable) • CD-MC20 (Auto EQ microphone) • ND-BC8 (Reverse camera) |
| Tuner | • RDS FM/AM tuner • DAB+ Tuner (Time Shift function) |
| Plays | • Your iPod, iPhone, Android Smartphone • Bluetooth audioVia USB: • MP3, WMA, AAC, WAV and FLAC audio files • H.264, MKV, FLV and MPEG4 video files in Full HD • Mpeg2, DivX video files • JPEG image files |
| USB Input | Rear USB (1.5 Amp) |
Apple Compatibility
| Made for iPod / iPhone | |
| Siri Eyes Free | |
| Works with iPod | |
| Works with iPhone / iPod | |
| Works with iPhone |
Android Compatibility
| Compatible with Android |
Audio
| FLAC | |
| 13-band Graphical EQ | |
| RCA Pre-Outs | 3 (Front, Rear, Subwoofer) |
| 3-Way Network Mode | |
| Source Level Adjuster | |
| High Pass Filter | |
| Low Pass Filter | |
| Loudness | |
| Equaliser | 13-band Graphic Equaliser |
| Auto EQ (Equaliser) | |
| Time Alignment |

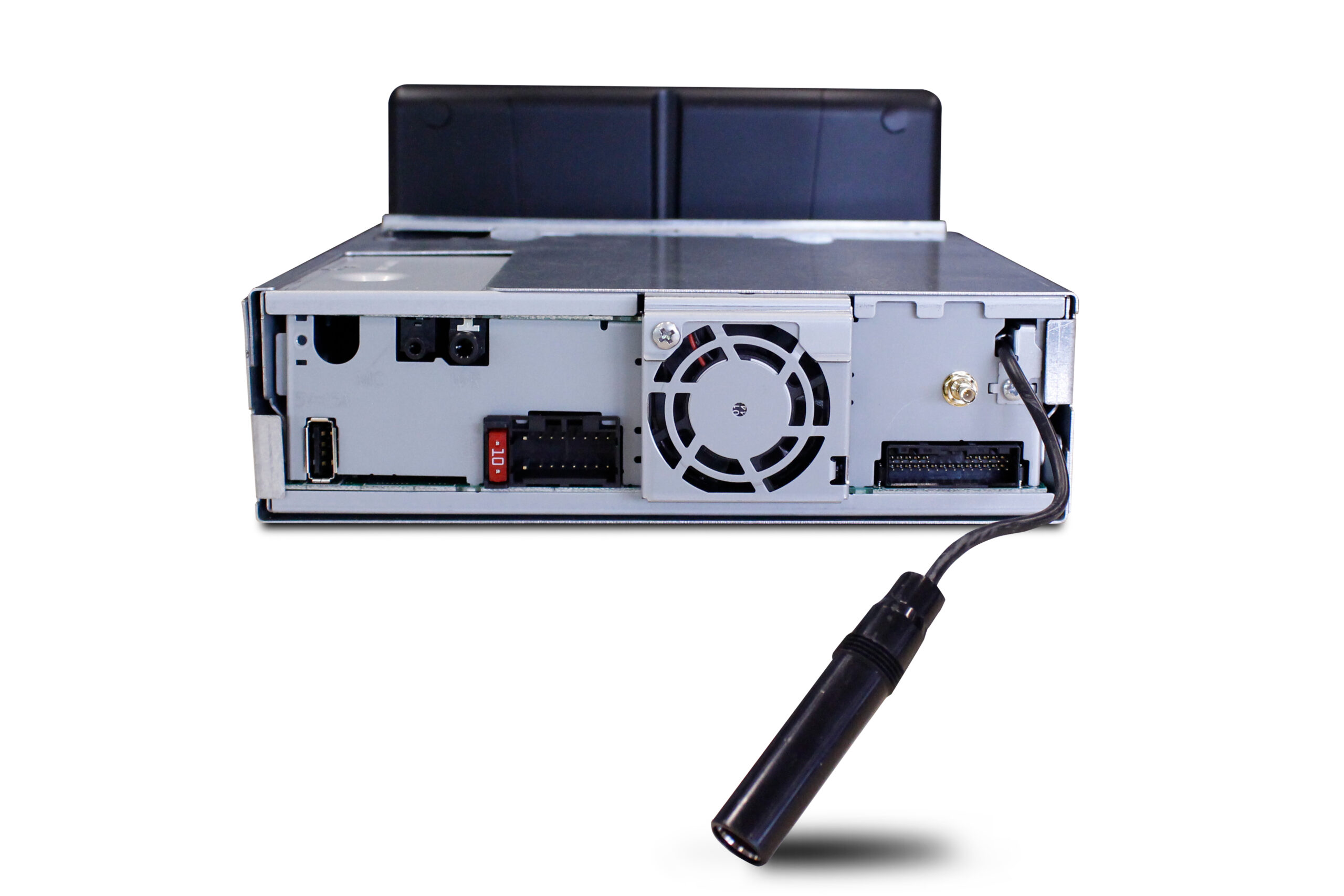

Connections
| Aux-in | Rear Aux-in |
| iPod/iPhone Direct Control | |
| PAL/NTSC/SECAM | |
| High Voltage Output | 4V |
| RCA video | 2 x Video Input (RCA / mini-jack AV) |
| Hard wired remote input | |
| Video output | Rear Video output |
| ISO connector | |
| Input for rear camera | Yes |
Bluetooth
| Pioneer Bluetooth | |
| Additional Bluetooth Features | • Audio streaming • Automatic Phone book Transfer (5 x 1000 contacts) • 2 Phones full time connect • Autopairing via USB |
| Compatibility | HFP/A2DP/SPP |
| Hands-free calls |
Screen Features
| Selectable wide screen modes | |
| Rear camera switching | |
| Aspect ratio | 16:09 |
