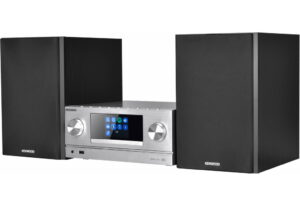

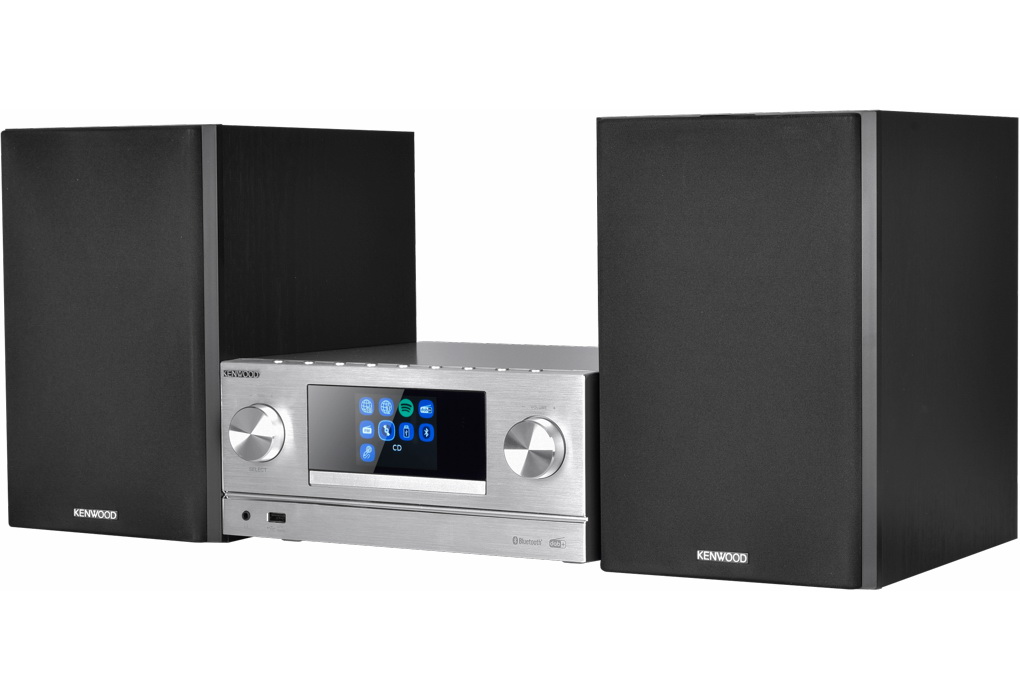

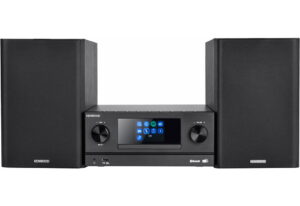

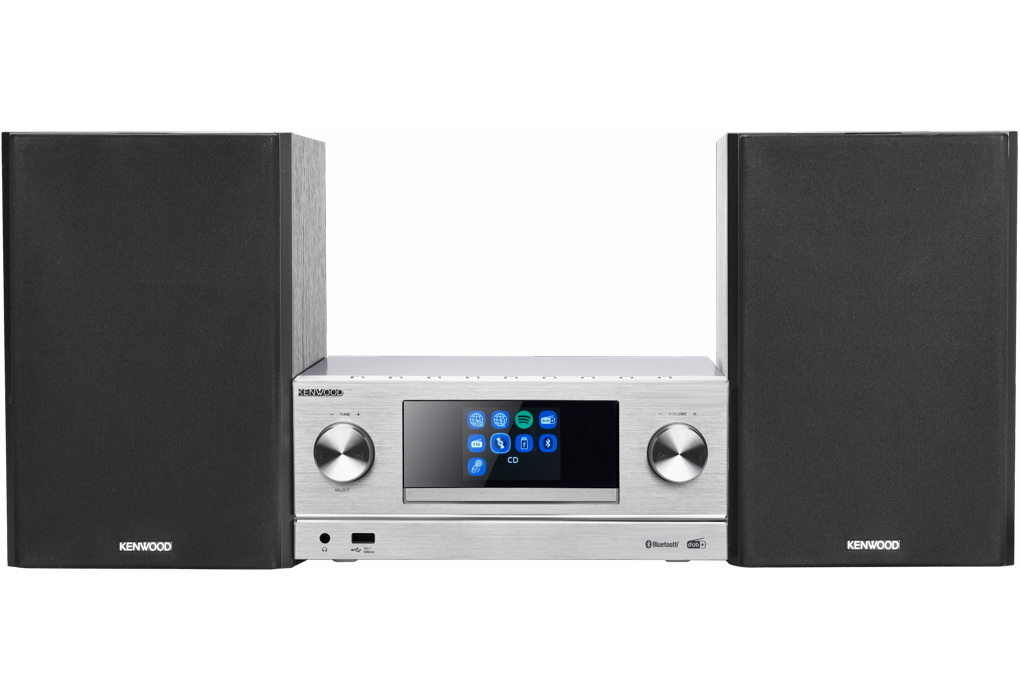

The M-9000S is a real multi-talented Micro Hi-Fi System! It can receive radio stations from the Internet, DAB+ or FM and if you want to listen to your own personal song collection, you can play it from either USB, CD, or stream it wirelessly via Bluetooth or Spotify Connect.
This Smart Micro Hi-Fi System can receive radio stations from the internet, DAB+ or FM. If you listen to your own personal song collections, you can play them from either USB, CD, or stream it wirelessly via Bluetooth or Spotify Connect.
Key Features
| DAB+ / FM-RDS Receiver |
| Internet Radio via WiFi |
| CD and USB connection |
| Amplifier with 2 x 50 W output power |
| Bluetooth Audio-Streaming (A2DP) |
| Spotify Connect |
| Clock with Dual-Alarm and Sleep Timer |
General Features
| Equalizer |
5 Presets (Powerful / Clear / Bright / Warm / Balanced) |
| Remote Control |
31-key Slim Type Remote |
| Remote Control App |
Yes, (UNDOK App) |
| Dimmable Display |
Yes, High / Medium / Low / Timeout |
Tuner Features
| Tuner |
Yes, FM |
| Tuner (DAB+) |
Yes |
| Radio Data System |
Yes |
| Number of Presets (FM) |
20 |
| Number of Presets (DAB) |
20 |
| Alarm |
Yes, Dual Alarm |
| Sleep Timer |
Yes |
Bluetooth General Features
USB Features
| Playable Files |
MP3, AAC |
| Compatible Media |
Mass Storage Device |
| Repeat Playback |
Repeat one / Repeat folder / Repeat all |
| Random Playback |
Random playback |
CD Features
| CD DA / CD-R/RW |
Yes |
| MP3 |
Yes |
| Repeat Playback |
Repeat one / Repeat folder (only for MP3) |
| Random Playback |
Yes |

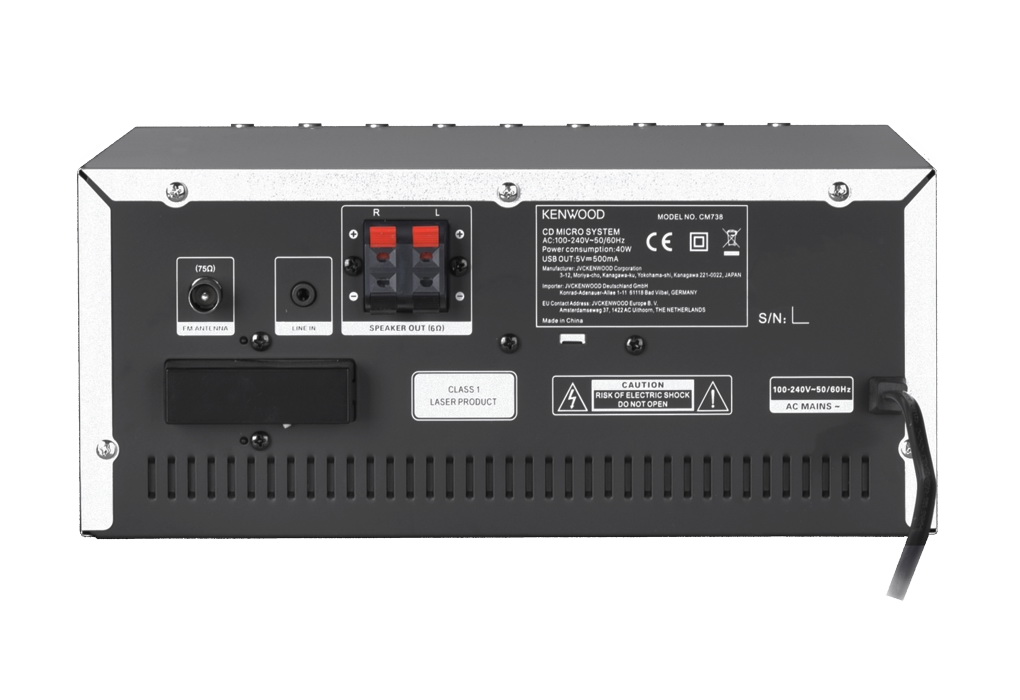

Analogue Inputs/Outputs
| Push-type Speaker Terminals |
Yes |
| Headphone Jack (3.5 mm) |
Yes |
| Auxiliary Input Jack (3.5mm) |
Yes, at the backside |
| Line Input Jack (3.5mm) |
Yes, Rear side |
| 75 Ohm FM Antenna Connector |
Yes |
Amplifier Features
| Maximum Stereo Output Power |
2 x 50 Watt |
Speakers
| Type |
Bookshelf |
| Configuration |
2-Way Bass Reflex Speakers |
| Grill |
Detachable textile cover |
Tuner Specifications
| FM Tuning Frequency Range |
87.5 ~ 108MHz |
| DAB+ Tuning Frequency Range |
174,928 MHz ~ 239,200 MHz (Band III) |
USB Specifications
| Format |
USB Host (Playback) |
| USB Standard |
1.1 / 2.0 |
| Usable USB devices |
USB mass storage class devices |
| Compatible Files |
MP3/AAC files with file extension <.mp3> or <.m4a> |
| MP3 Sampling Frequency (Stereo) |
44.1kHz |
| MP3 Bitrate (CBR/VBR) |
32 kbps to 320 kbps |
| Maximum Current Supply |
500mA |
| File System |
FAT 16 / 32 |
CD Player Specifications
| Signal to noise ratio |
More than 65 dB |
| Dynamic range |
More than 60 dB |
Network Specifications
| Wi-Fi IEEE Standard |
WIFI IEEE 802.11 a/b/g/n |
| Wi-Fi Protocol |
a / b / g / n |
| Wi-Fi Security Encryption |
WEP, WPA, WPA2 (PSK), WPS |
| Wi-Fi Frequency Range |
WiFi: 2.412 – 2.472 GHz, 5.18 – 5.32 GHz, 5.50 – 5.70GHz, 5.745 – 5.825GHz |
| Wifi Output Power WiFi 2,4G |
13.6 dbm |
| Wifi Output Power WiFi 5G |
13.6 dbm |
| Wifi Output Power WiFi 5,8G |
13.6 dbm |
Speaker Specifications
| Impedance |
6Ω |
| Tweeter |
30 mm Dome Tweeter |
| Low-Midrange |
130mm Driver |
| Speaker |
Bass-reflex type |
General Specifications
| Display Type |
2.8“ (7.1 cm) TFT Color Display |
Power Specifications
| Power Consumption |
40 Watt |
| Stand-by Power Consumption (less than) |
0.8 Watt |
| Power Supply |
100-240V AC 50/60Hz |
| Operational Temperature Range |
0 °C – 35 °C |
Dimensions & Weight
| Dimensions Body (WxHxD) |
260 x 115 x 260 mm |
| Dimensions Speaker (WxHxD) |
173 x 263 x 240 mm |
