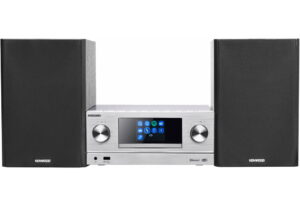

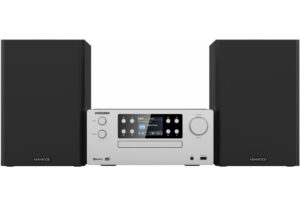

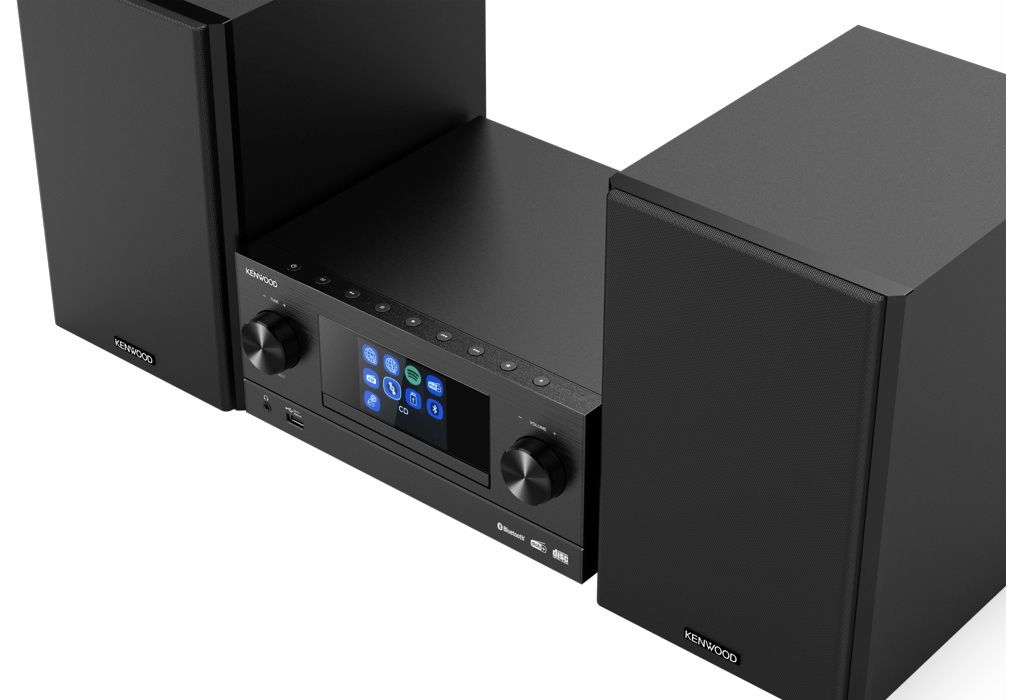

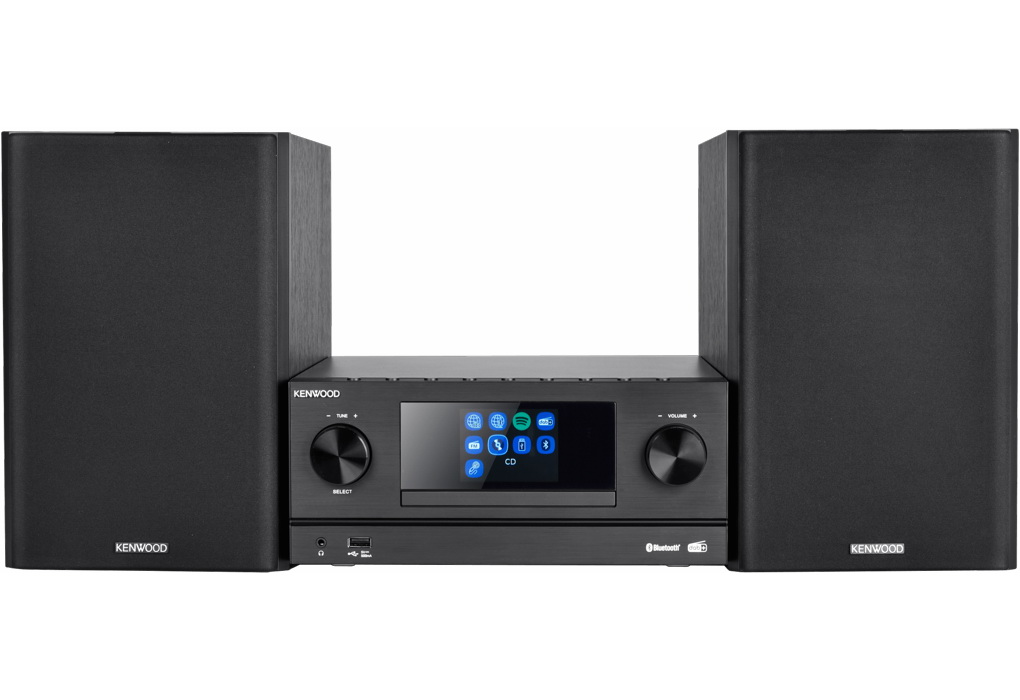

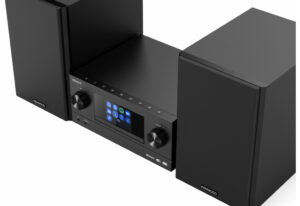

The M-9000S is a real multi-talented Micro Hi-Fi System! It can receive radio stations from the Internet, DAB+ or FM and if you want to listen to your own personal song collection, you can play it from either USB, CD, or stream it wirelessly via Bluetooth or Spotify Connect.
The M-9000S is a real multi-talented Micro Hi-Fi System!
This Smart Micro Hi-Fi System can receive radio stations from the internet, DAB+ or FM. If you listen to your own personal song collections, you can play them from either USB, CD, or stream it wirelessly via Bluetooth or Spotify Connect.
Key Features
| DAB+ / FM-RDS Receiver |
| Internet Radio via WiFi |
| CD and USB connection |
| Amplifier with 2 x 50 W output power |
| Bluetooth Audio-Streaming (A2DP) |
| Spotify Connect |
| Clock with Dual-Alarm and Sleep Timer |
General Features
| Equalizer |
5 Presets (Powerful / Clear / Bright / Warm / Balanced) |
| Remote Control |
31-key Slim Type Remote |
| Remote Control App |
Yes, (UNDOK App) |
| Dimmable Display |
Yes, High / Medium / Low / Timeout |
Tuner Features
| Tuner |
Yes, FM |
| Tuner (DAB+) |
Yes |
| Radio Data System |
Yes |
| Number of Presets (FM) |
20 |
| Number of Presets (DAB) |
20 |
| Alarm |
Yes, Dual Alarm |
| Sleep Timer |
Yes |
Bluetooth General Features
USB Features
| Playable Files |
MP3, AAC |
| Compatible Media |
Mass Storage Device |
| Repeat Playback |
Repeat one / Repeat folder / Repeat all |
| Random Playback |
Random playback |
CD Features
| CD DA / CD-R/RW |
Yes |
| MP3 |
Yes |
| Repeat Playback |
Repeat one / Repeat folder (only for MP3) |
| Random Playback |
Yes |

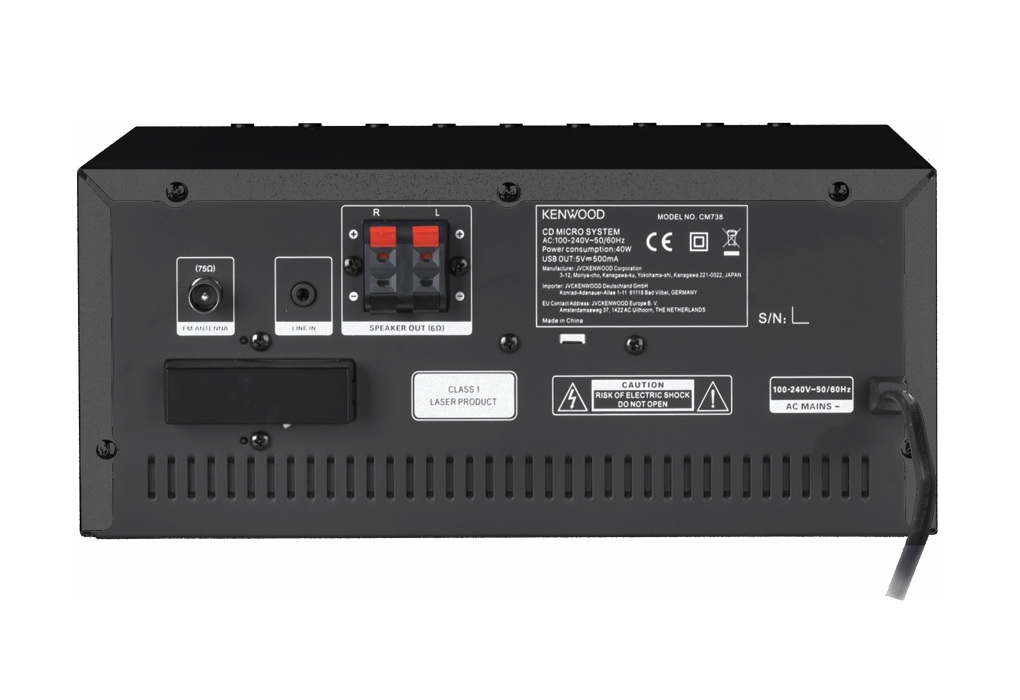

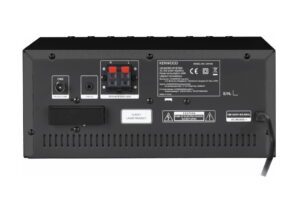

Analogue Inputs/Outputs
| Push-type Speaker Terminals |
Yes |
| Headphone Jack (3.5 mm) |
Yes |
| Auxiliary Input Jack (3.5mm) |
Yes, at the backside |
| Line Input Jack (3.5mm) |
Yes, Rear side |
| 75 Ohm FM Antenna Connector |
Yes |
Amplifier Features
| Maximum Stereo Output Power |
2 x 50 Watt |
Speakers
| Type |
Bookshelf |
| Configuration |
2-Way Bass Reflex Speakers |
| Grill |
Detachable textile cover |
Tuner Specifications
| FM Tuning Frequency Range |
87.5 ~ 108MHz |
| DAB+ Tuning Frequency Range |
174,928 MHz ~ 239,200 MHz (Band III) |
USB Specifications
| Format |
USB Host (Playback) |
| USB Standard |
1.1 / 2.0 |
| Usable USB devices |
USB mass storage class devices |
| Compatible Files |
MP3/AAC files with file extension <.mp3> or <.m4a> |
| MP3 Sampling Frequency (Stereo) |
44.1kHz |
| MP3 Bitrate (CBR/VBR) |
32 kbps to 320 kbps |
| Maximum Current Supply |
500mA |
| File System |
FAT 16 / 32 |
CD Player Specifications
| Signal to noise ratio |
More than 65 dB |
| Dynamic range |
More than 60 dB |
Network Specifications
| Wi-Fi IEEE Standard |
WIFI IEEE 802.11 a/b/g/n |
| Wi-Fi Protocol |
a / b / g / n |
| Wi-Fi Security Encryption |
WEP, WPA, WPA2 (PSK), WPS |
| Wi-Fi Frequency Range |
WiFi: 2.412 – 2.472 GHz, 5.18 – 5.32 GHz, 5.50 – 5.70GHz, 5.745 – 5.825GHz |
| Wifi Output Power WiFi 2,4G |
13.6 dbm |
| Wifi Output Power WiFi 5G |
13.6 dbm |
| Wifi Output Power WiFi 5,8G |
13.6 dbm |
Speaker Specifications
| Impedance |
6Ω |
| Tweeter |
30 mm Dome Tweeter |
| Low-Midrange |
130mm Driver |
| Speaker |
Bass-reflex type |
General Specifications
| Display Type |
2.8“ (7.1 cm) TFT Color Display |
Power Specifications
| Power Consumption |
40 Watt |
| Stand-by Power Consumption (less than) |
0.8 Watt |
| Power Supply |
100-240V AC 50/60Hz |
| Operational Temperature Range |
0 °C – 35 °C |
Dimensions & Weight
| Dimensions Body (WxHxD) |
260 x 115 x 260 mm |
| Dimensions Speaker (WxHxD) |
173 x 263 x 240 mm |
